REGO 7590U
$68.00
Shipping calculated at checkout.

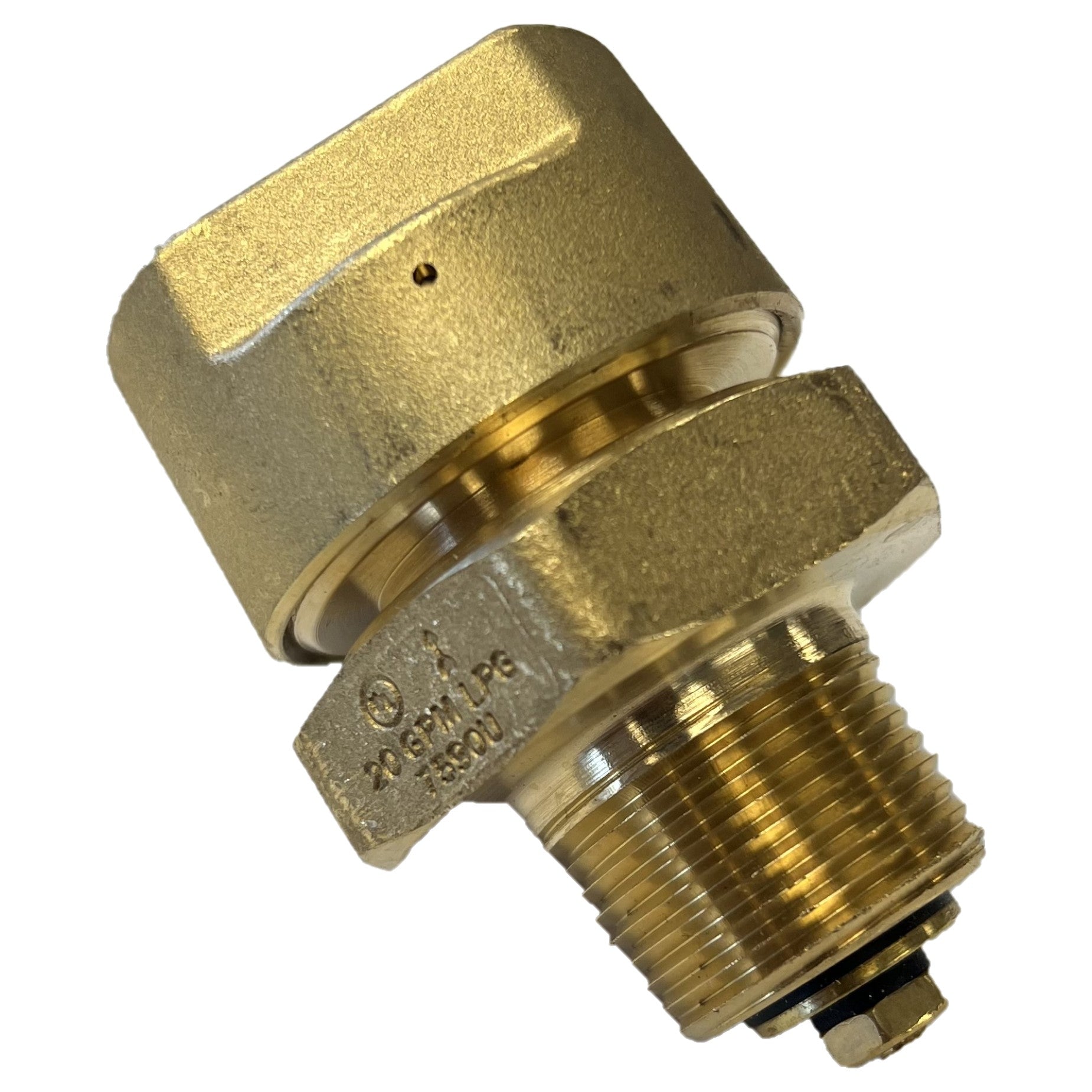

3/4 CHEK-LOK VALVE
Specifications
Inlet Connection (in.) - 3/4” M. NPT
Outlet Connection (in.) - 1 5/8"
Approximate Closing Flow Liquid Gpm Propane - 20 GPM
B Aprroximate Effective Length - 1 7/16"
Body Wrench Hex Flats - 1 3/4”
Brand - Rego
Cap Wrench Hex Flats - 1 5/16"
Connection Type - M. NPT x UNF
Materials - Body, Brass |Stem, Brass |Spring, Stainless Steel |Seals, Synthetic Rubber |Valve Poppet, Brass |Gasket, Nylon
Features & Benefits
- Extra strength connection between body and adapter provides increased strength.
- Weep hole in cap provides indicator to verify Chek-Lok® is closed before cap removal.
- Heavy duty brass cap requires at least 3 1/2” full turns for removal.
- O-ring seal on adapter provides a gas tight seal before the adapter opens the equalizing stem.
- Eliminates need for individual transfer valves at each container.
- UL listed.
- Temperature range of -40°F to +165°F. (-40°C to +73°C)
- MAWP: 250 PSIG(17 Bar)
