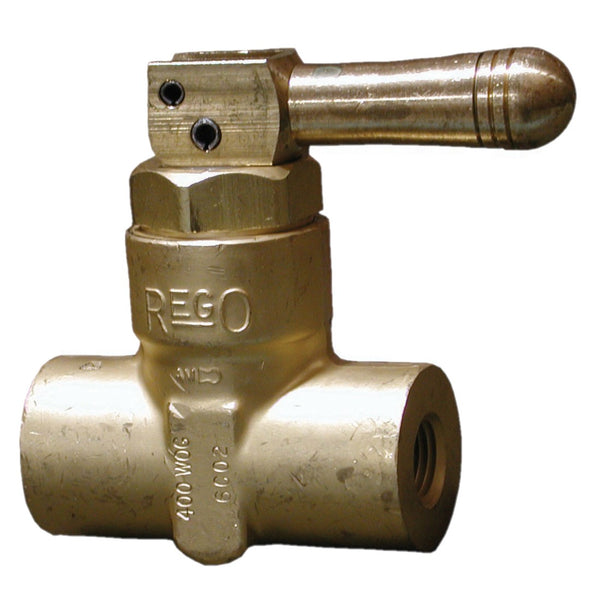

REGO 7901TC
$140.02
Shipping calculated at checkout.
1/2X1/2 QCK VLV
Designed primarily for use on cylinder charging hoses to provide fast, convenient shut-off and fast opening. These valves must be installed so that flow through the valve is in the opposite direction to that of a conventional globe valve. This allows the inlet flow to assist in closing the valve, and even more important, helps prevent the valve from being forced open by high pump pressure.
Specifications
Flow At 1 (PSIG) Cv Pressure Drop - (GPM) Propane1.95 GPM
Inlet Connection (in.) - 1/2” F. NPT
Outlet Connection (in.) - 1/2” F. NPT
Body Material - Brass
Brand - Rego
Connection Type - F. NPT x F. NPT
Materials - Body (7053T, 7901), Forged Brass |O-Ring, Resilient Synthetic Rubber |Bonnet Assembly (7053T, 7901), Brass |Seat Disc, Resilient Synthetic Rubber |Handle (7053T, 7901), Brass |Springs, Stainless Steel
Features & Benefits
- Quick-acting design speeds transfer operations.
- Permits easy, one-handed opening and closing of the valve.
- O-ring stem seal design.
- Provides quick, positive shut-off.
- Temperature range of -40°F to +165°F. (-40°C to +73°C)
- MAWP: 400 PSIG(27 Bar)
