REGO 8593AL16

$610.78
Shipping calculated at checkout.

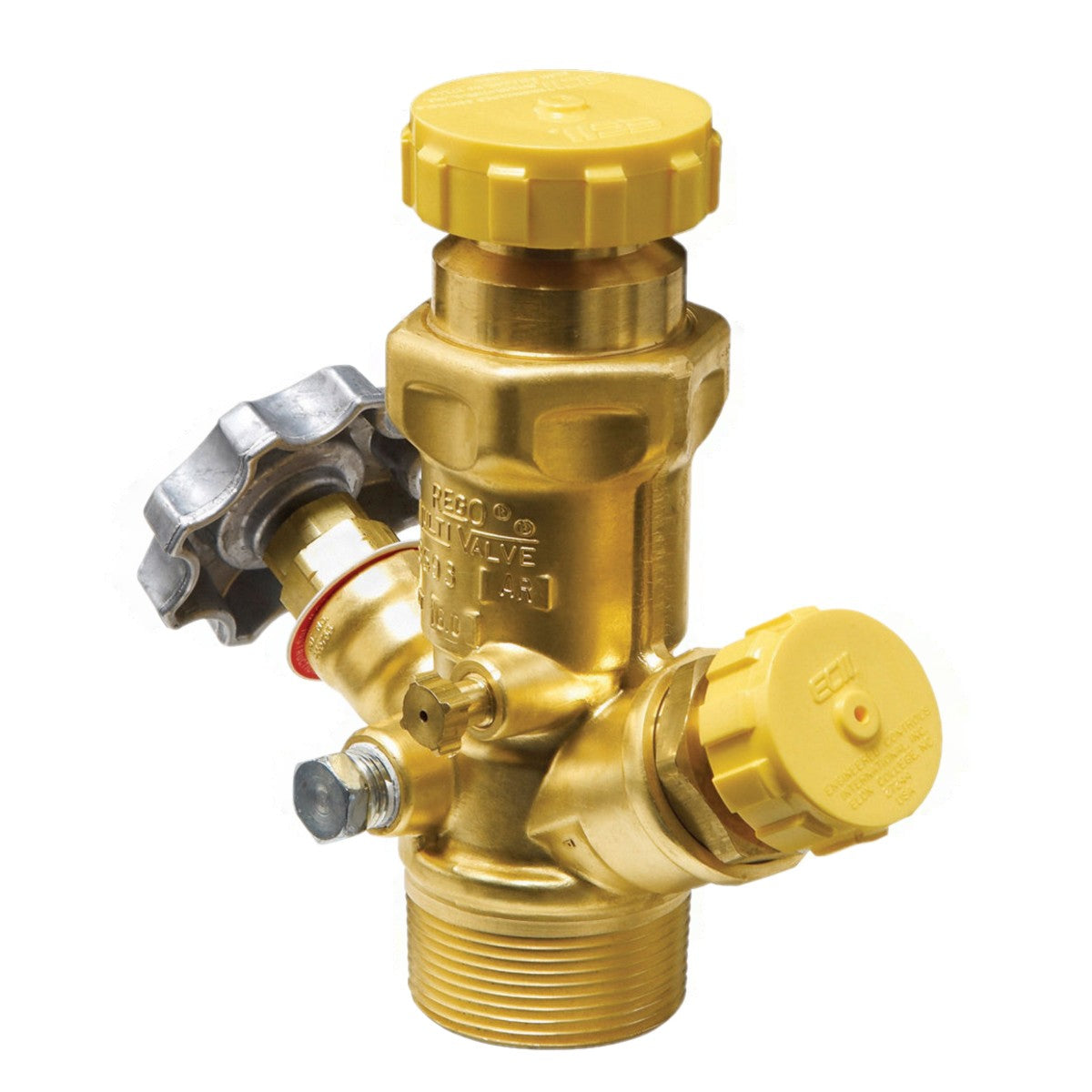

MULTIVALVE

These Multivalve® assemblies provide vapor withdrawal and filling of ASME containers. A separate pressure relief valve is required in addition to this valve. The MultiBonnet® assembly is standard on this valve.

Specifications
Approximate Filling Rate Liquid Flow(GPM) Pressure Drop Across Valves 10 (PSIG) - 42 GPM
Approximate Filling Rate Liquid Flow(GPM) Pressure Drop Across Valves 50 (PSIG) - 98 GPM
Approximate Filling Rate Liquid Flow(GPM) Pressure Drop Across Valves 100 (PSIG) - 125 GPM
Approximate Filling Rate Liquid Flow(GPM) Pressure Drop Across Valves 25 (PSIG) - 72 GPM
Brand - RegO
Container Connection (In.) - 1 1/2” M. NPT
Container Connection Type - M. NPT
Dip Tube Length - 16”*
Filling Connection(in) - 1 3/4" M. ACME
Filling Connection Type - M. ACME
Fixed Liquid Level Vent Valve Style - Knurled
For Use In Containers W Surface Area Up To - Since these Multivalve® assemblies have no integral pressure relief valves, they can be used on any ASME container with an independent relief device sufficient for that tank’s capacity.
Materials - Body, Forged Brass |Handwheel, Aluminum Die Cast |Valve Stem, Brass |O-Ring, Resilient Rubber |Seat Disc (shut-off valve), Nylon |Seat Disc (other), Resilient Rubber
Service Connection (in.) - F. POL (CGA 510)
Service Connection Type - F. POL
Vapor Equalizing Connection - 1 1/4” M. ACME
Vapor Equalizing Connection Type - M. ACME
Vapor Equalizing Connection Ul Listed Closing Flow - 4200 CFH at 100 PSIG

Features & Benefits
  • Combines low emission double back check filler valve, vapor equalizing valve, service valve, fixed liquid level and a plugged pressure gauge opening.
  • Double back check filler valve is low emission, 2.13cc at disconnection with no reduction in fill rates.
  • Includes plugged, 1/4” F. NPT gauge boss.
  • “Y” shape configuration allows for ease of operation with all valves and gauges easily accessible at all times.
  • Large 21⁄16” hex wrenching boss on center column provides ease of installation in tank coupling.
  • MultiBonnet® assembly allows quick and easy repair of bonnet.
