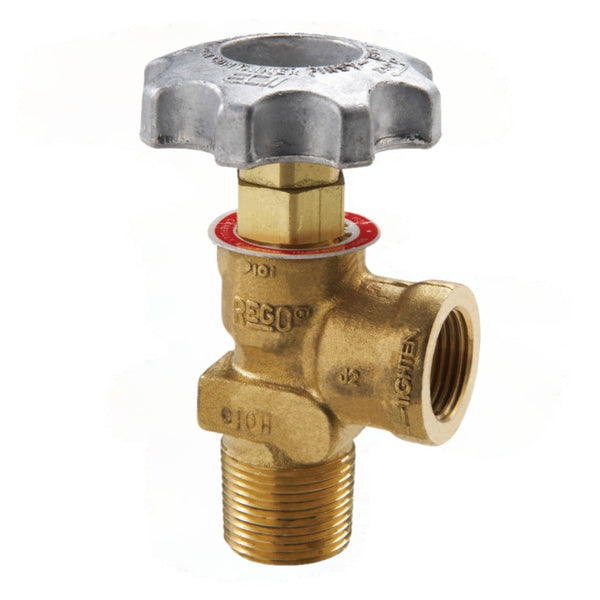

REGO 9101R1

$62.12
Shipping calculated at checkout.

SERVICE VALVE POL

Designed for vapor withdrawal service on ASME and DOT containers or in fuel line applications. Since none of these valves have an integral pressure relief valve, they may only be used as an accessory valve on containers that have an independent pressure relief valve sufficient for that container’s capacity.

Specifications
Approximate Filling Rate Liquid Flow(GPM) Pressure Drop Across Valves 50 (PSIG) - 15.2 GPM
Approximate Filling Rate Liquid Flow(GPM) Pressure Drop Across Valves 25 (PSIG) - 11.7 GPM
Approximate Filling Rate Liquid Flow(GPM) Pressure Drop Across Valves 100 (PSIG) - 20.6 GPM
Approximate Filling Rate Liquid Flow(GPM) Pressure Drop Across Valves 10 (PSIG) - 7.6 GPM
Container Connection (in.) - 3/4" M. NGT
Service Connection (in.) - F. POL (CGA 510)
Bonnet Style - MultiBonnet® assembly
Brand - RegO
Container Connection Type - M. NGT
Dip Tube Length W Deflector - N/A
Fixed Liquid Level Vent Valve - No
Service Connection Type - F. POL

Features & Benefits
  • O-Ring stem seal design provides positive seal.
  • Metal-to-metal back seat provides added protection against leakage while the valve is open.
  • Valves with fixed liquid level gauges permit operator to quickly determine when the maximum permitted filling level of the container is reached.
  • 9101R Series with MultiBonnet® assembly allows quick and easy repair of bonnet.
  • PT9102R Series With the service valve closed the pressure test/Presto-Tap® port is isolated from the container. This will allow a high pressure leak test to be conducted without disconnecting the pigtail from the service valve. For more information, see page C13 on this feature
