Agricultural Sprayer Parts Store in Amarillo: Picking Nozzles That Cut Wind Drift

You fill the tank, set the pressure, and start your pass. Then the wind picks up. Half your spray drifts off target before it ever hits the crop.

That drift is money leaving your field. You pay for chemicals that land on your neighbor's property or float into the air, and the pests or weeds you meant to hit survive. Nozzle choice is the fastest fix for this, and it costs less than a single wasted tank. This guide shows you which nozzle types cut drift and how to match the right tip to your rig and your wind conditions.

How Wind Drift Happens and Why Nozzles Matter

Wind drift occurs when a sprayer produces droplets small enough for wind to carry away. The smaller the droplet, the easier the wind catches it, and nozzle design is what controls that droplet size. Different tips behave very differently in the same wind:

• Flat-fan nozzles make a fine mist and drift easily.
• Flooding or air-induction nozzles make larger, heavier droplets that resist wind.


Switching nozzles is often a free or $20 fix that cuts drift by 30–50%.

Droplet size matters more than pump pressure or water volume. Two sprayers running identical pressure can produce completely different drift profiles if one uses a standard fan tip and the other uses a drift-reduction nozzle. That's why experienced applicators choose nozzles before they set pressure.

Types of Drift-Reduction Nozzles

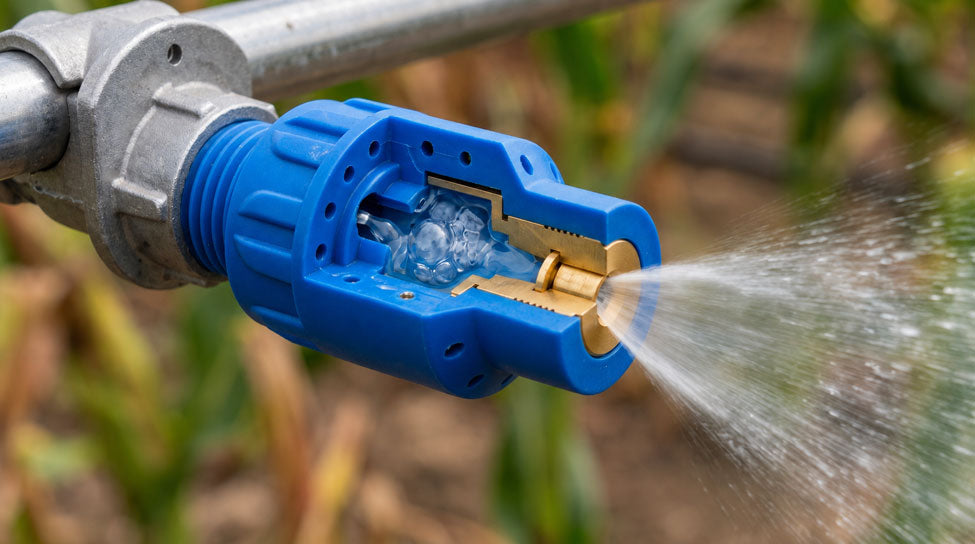

Air-Induction Nozzles (Best for Most Conditions)

Air-induction nozzles suck air into the spray stream as liquid exits the tip. This air mixes with water, creating larger, slower-moving droplets. These droplets are heavy enough to resist wind and fall faster. Air-induction nozzles reduce drift by 30–70% compared to standard flat-fan tips, depending on wind speed and application distance.

The tradeoff is coverage speed. Air-induction nozzles sometimes require slightly higher pressure (40–60 psi instead of 20–30 psi) to maintain flow rate. They also cost $8–10 per tip instead of $5–7, but that cost disappears after one efficient spray pass that doesn't miss half your field to drift.

Venturi or Deflection Nozzles

Venturi tips direct the spray stream downward and outward through a narrowed opening, which creates larger droplets than a flat fan alone. They're simpler than air-induction designs and cost about the same. They work well for ground-based spraying and low-wind conditions. They're less effective in strong wind compared to air-induction nozzles but more effective than standard fans.

Turbo Flat-Fan Nozzles

Turbo flat-fan nozzles are optimized flat-fan designs that reduce droplet size less aggressively than air-induction tips but provide better drift control than standard fans. They're common on mid-range sprayers and work for light-wind conditions. They're cheaper than air-induction nozzles but won't save you in high-wind situations.

Matching Nozzles to Your Sprayer and Conditions

The wind tolerance tells you the maximum wind speed where the nozzle still delivers acceptable coverage. Air-induction nozzles tolerate stronger wind because their droplets are heavier. If you're spraying in 10+ mph wind regularly, air-induction is worth the cost.

Spray Nozzle Tips: Capacity vs. Drift Trade-Off

Nozzles are labeled by number: 02, 04, 06, 08, and so on. That number is a quick way to read how much liquid the tip puts out. The bigger the number, the more gallons per minute it sprays at standard pressure. A 04 puts out about 0.4 gallons a minute, an 08 puts out about 0.8. Bigger nozzles cover ground faster, but they can throw coarser or finer droplets depending on how you run your pressure.

A quick way to keep coverage and drift control in balance:

• Pick your nozzle for the wind first. Match the tip to your conditions and the droplet size you need before anything else.
• Then dial in your pressure. Adjust pressure to hit the flow rate you're after.
• If a drift nozzle can't keep up on volume, bump up your pump pressure or narrow your boom width instead of switching to a driftier tip.


Wind Conditions and When to Change Nozzles

Match your nozzle to the wind you're working in that morning:

• Calm (0–3 mph): Ideal for spraying. Standard flat-fan nozzles still give you good coverage.
• Light wind (3–6 mph): Step up to at least a turbo flat-fan or deflection nozzle.
• Moderate wind (6–10 mph): Switch to air-induction or high-flow venturi nozzles.
• Heavy wind (10+ mph): Wait it out or accept that some drift loss is inevitable even with the best nozzle.


Many applicators keep multiple nozzle sets on hand and swap them depending on morning conditions. Spending five minutes changing tips is cheaper than losing 20–30% of your spray to drift.

Installation and Setup

Getting new nozzles on your rig is quick if you follow a few steps:

• Confirm your connection type. Nozzles thread or snap onto your boom or handheld wand, and most setups take seconds to swap.
• Check your sprayer manual for the correct thread size. This is usually 1/4 NPT or similar, so buy nozzles that match your existing connection.
• Bring your current tip if you're unsure. If your manual doesn't list compatible nozzles, a parts supplier can match it by thread size and style.
• Run plain water through the new tips first. This lets you verify flow and pattern, and you want even coverage across the boom or fan width.
• Replace any defective nozzle. If one produces a bent or uneven spray, swap it out before mixing chemicals.


Frequently Asked Questions

What's the difference between air-induction and venturi nozzles?

Air-induction nozzles mix air into the spray stream to create larger droplets, reducing drift by 30–70%. Venturi nozzles use deflection to achieve similar results but are simpler and cost slightly less. Air-induction is more effective in high wind.

Can I use a drift-reduction nozzle on any sprayer?

Yes, if the nozzle thread size matches your existing boom or wand connection. Check your sprayer manual for the correct thread size (usually 1/4 NPT) and bring your current tip to a parts supplier if you're unsure.

Do drift-reduction nozzles reduce my spray volume?

Not if you increase pressure slightly. Air-induction nozzles at 40–60 psi deliver the same volume as flat-fan nozzles at 20–30 psi. The pressure increase is small and worth it for drift control.

What wind speed is too high for spraying?

Most drift-reduction nozzles work well up to 8–10 mph. Above 10–12 mph, even the best nozzle will lose some coverage to wind. Wait for calmer conditions or accept higher drift loss.

How often do nozzles wear out?

Nozzles last 500–1,000 hours of spraying, depending on the material. Inspect them annually for wear or clogging. Replace them if the spray pattern becomes uneven or the tip looks eroded.

Can I mix nozzle types on one sprayer boom?

No. Using different nozzle types on the same boom creates uneven coverage and inconsistent droplet size. Keep all tips on a boom the same make and model.

Match the Nozzle Before Spray Season

Knowing which nozzle cuts drift is the first step, but having the right tips on the shelf when the wind picks up is what keeps the product on target. The worst time to scramble for nozzles is mid-application, when half your chemical is already blowing off the field. Bringing in your current tip lets our team match thread size and style, so you leave with a setup that fits your rig.
