REGO 7705P
$256.00
Shipping calculated at checkout.

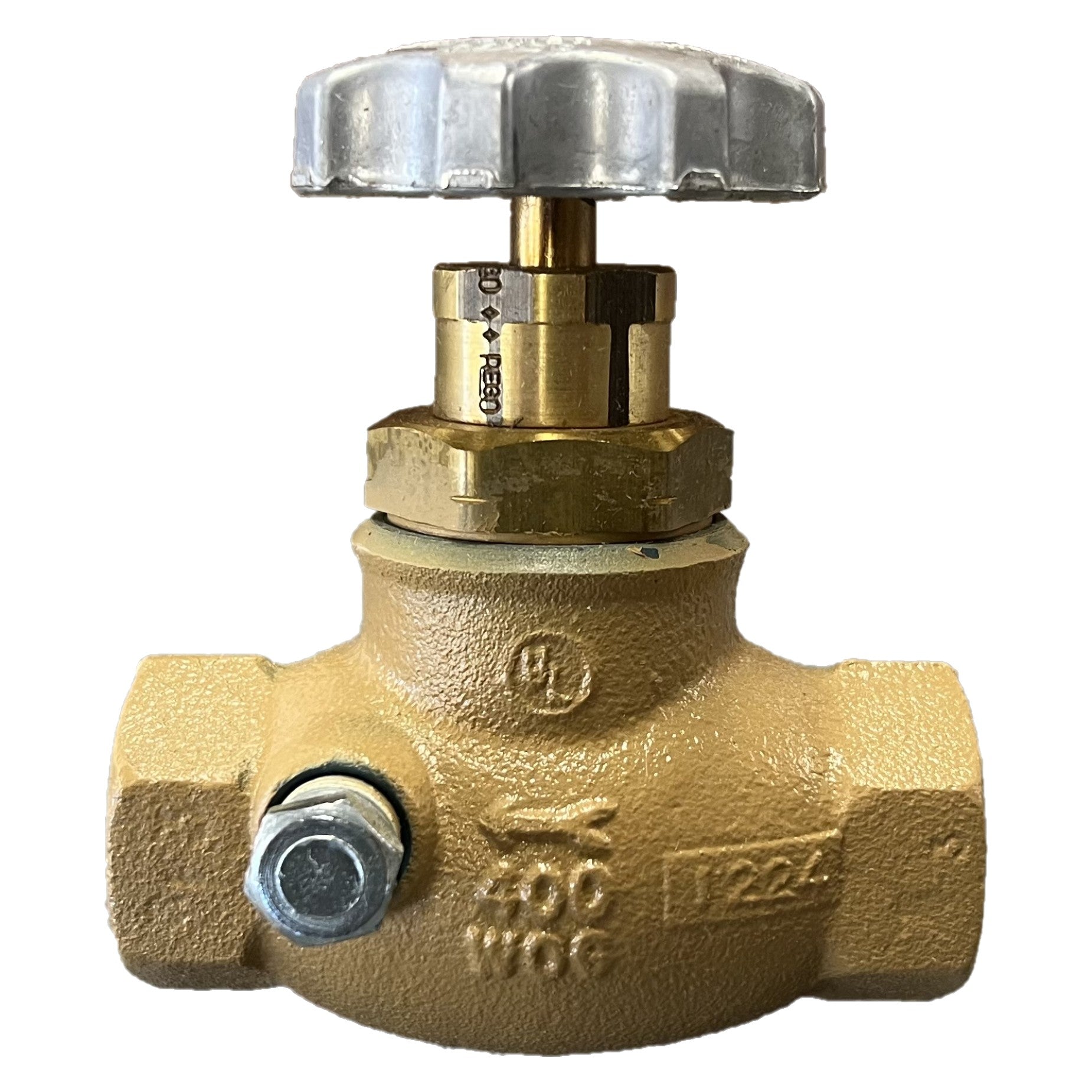

3/4 GLOBE VALVE
Designed to ensure positive shut-off and long maintenance-free service life in liquid or vapor service. Ideally suited for use on cylinder charging manifolds, truck filling hoses, bulk storage containers and plant piping. The high quality construction and wide variety of sizes make them highly suited for use with LP-Gas, anhydrous ammonia and in the chemical and petrochemical industries.
Specifications
Flow At 1 (PSIG) Cv Pressure Drop(GPM) Propane - 11.5 GPM
Accessories Hydrostatic Relief Valve - SS8001J or SS8001L
Accessories Vent Valve - TSS3169
Brand - Rego
Connection Type - F. NPT x F. NPT
Inlet Connection (in.) - 3/4” F. NPT
Materials - Body, Ductile Iron |Bonnet (7704,05,06), Brass |Bonnet (A7704,05,06), Steel |Stem (7704-05-06), Bronze |Stem (A7704-05-06), Stainless Steel |Flange Ring, Synthetic Rubber |Seat Disc, Synthetic Rubber
Outlet Connection (in.) - 3/4” F. NPT
Style - Globe
Features & Benefits
- Available with either a brass bonnet and bronze stem for LP-Gas service or a steel bonnet and stainless steel stem for combined LP-Gas and anhydrous ammonia service.
- Flange seal stem provides for leak-proof operation. No packing to retighten or replace.
- Metal-to-metal back seat permits replacement of the flange ring with the valve in service.
- Plugged 1/4” NPT boss on downstream side of valve accommodates hydrostatic relief valve or vent valve.
- Swivel seat disc minimizes grinding on the body seat and ensures longer service life.
- “Dropped seat” body design of the angle valve provides high flow capacity.
- Temperature range of -40°F to +165°F. (-40°C to +73°C)
- MAWP: 400 PSIG(27 Bar)
