REGO LV404B96
$170.00
Shipping calculated at checkout.

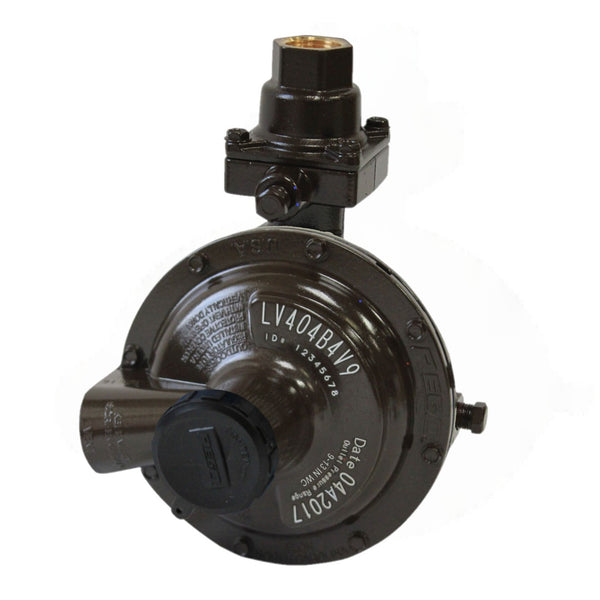

TWIN STAGE REG 3/4
This compact two-stage regulator is designed to reduce container pressure down to 11” w.c. delivery pressure. It is ideal for “on-site” cylinder applications, mobile homes and average domestic service including small ASME and 100 to 420 pound DOT cylinders.
Adjustment Range_PSIG - 9” to 13” w.c.
Vapor Capacity BTU/hr Propane - 600,000 BTU/hr
Inlet Connection - F. POL
Outlet Connection - ¾” F. NPT
Features & Benefits
- Incorporates integral relief valve.
- With 15 PSIG inlet pressure, regulator is designed to not pass more than 2 PSIG with the seat disc removed.
- Large vent helps prevent blockage and has ¾” F. NPT for vent piping.
- Compact size allows for easy installation — especially under container hoods and within collars.
- Vent on the first stage is consistently in the down position.
- Built in pressure taps on both first and second stage regulators have plugged ⅛” F.NPT outlets. Plugs can be removed with a 3⁄16” hex allen wrench.
- Select brown finish.
- Temperature Range: -40°F to +165°F
